Triol TM01-25

Wyróżniające się korzyści

Investment Savings

Cost savings during commissioning and well operation

Increased production through quality and timely solutions

Increased service life of submersible equipment

Ensuring the safety of personnel at wells site

O produkcie

Unique, premium, highly accurate solution

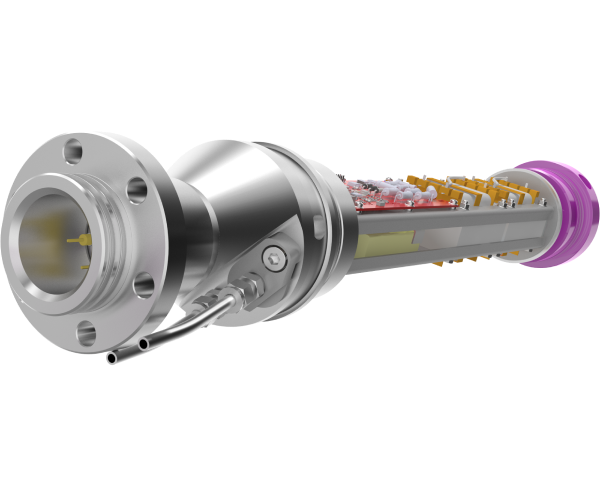

Downhole Measuring System Triol TM01-25 is a unique, premium, highly accurate and reliable solution for systems where there is a need to accurately monitor pressure and temperature at a pump discharge; to collect, process, display and quickly transfer submersible equipment actual parameters, well parameters, at fluid temperature up to 150°C (302°F), fluid temperature at pump discharge up to 250°C (428°F) and equipment suspension zone pressure up to 40 MPa (5800psi).

Distinctive benefits of Downhole Measuring System Triol TM01–25:

Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.

Displaying and processing of

  • pump discharge pressure
  • pump inlet pressure
  • pump discharge temperature
  • pump inlet temperature
  • submersible motor oil temperature or motor stator winding temperature
  • ESM vibration acceleration in the X, Y and Z axis
  • insulation resistance in the circuit “Step-up transformer – submersible cable – ESM”

Specyfikacje

Key parameters

Ambient temperature Up to +150 °С (32-302°F) constantly, resolution 0,01°С (0,1°F)
ESM oil temperature / ESM stator winding From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F)
Pump intake pressure 0-40 MPa (0-5800 psi) ±0,05 MPa (±6 psi), resolution 0,001 MPa (0,1 psi)
Pump discharge pressure 0-40 MPa (0-5800 psi) ±0,05 MPa (±6 psi), resolution 0,001 MPa (0,1 psi)
Pump discharge temperature 0-250 °С ±1°С (32-428°F ±1,8°F), resolution 0,01°С (0,1°F)
Axis vibration x, y, z 0-30 m/s² (0-3,06 g) ±5 %, resolution 0,1 m/s² (0.001 g)
Insulation resistance "Step-up transformer – ESM power line" 0-1000 kΩ (±5 %)
resolution 1 kΩ / 0-10 mA ±5%, (0,001 mA)
Insulation resistance "Step-up transformer – ESM power line"

1000-10000 kΩ (±10 %)

resolution 1 kΩ

Operation mode (duration) Extended
Data update time 30 s
Controller communication protocol RS-232, RS-485 Modbus RTU
Communication protocol Step-up transformer / Submersible unit Closed
Communication protocol Surface unit / VSD Triol / Transfer


Additional Options

Options

Digital Module TM01 16 digital inputs / 8 digital outputs
Analog Module TM01 8 digital outputs
Adam TM01 Adapter RS485/422/232 Ethernet
Triol High-Voltage Choke IP20 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol High-Voltage Choke Triol IP56 230х460х142 mm, 24 kg, IP20, from -40 to + 60 ° С (from -40 ° F to +140 ° F)
Test Unit Triol TM01 454х324х171 mm, 11 kg, IP67, from -40 to + 55 ° С (from -40 ° F to +131 ° F), 4 hours
Test Unit Triol TM01 454х324х171 mm, 9 kg, IP67, from -20 to+ 60 ° С (from -4 ° F to +140 ° F)
SCP Modem The type of modem depends on the region of implementation
